Recovering Data from an Old PC Hard Drive Using a USB Adapter

If you need to retrieve files from an old X-ray PC, follow this step-by-step guide to safely connect the old hard drive to the newer X-ray computer using a USB adapter.

🧰 What You’ll Need

Step-by-Step Instructions

1. Prepare the Old PC
  • Place the old computer on its side on a sturdy table.
  • Remove the side panel to access the internal components.

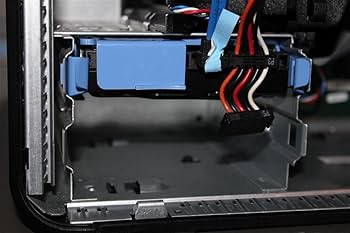

  • Locate the hard drive (likely a 3.5” spinning HDD).
    It should look similar to this:

    618oWTJCffL._UF350,350_QL80_
2. Remove the Hard Drive
  • Carefully disconnect the drive from any power/data cables or mounting brackets.
  • You should now be able to hold the drive freely in your hands.
3. Connect the Adapter
  • Plug the appropriate connector (IDE or SATA) from the adapter into the hard drive.
  • Connect the included power supply to the drive (required for spinning HDDs).
  • Plug the USB end of the adapter into an available USB port on your current PC.
4. Access the Data
  • After a few moments, the old hard drive should appear as a new drive letter in File Explorer (Windows).
  • Open the drive and copy any important data to the current machine or a safe location.
